Basic HTML markup in the WMS


OVERVIEW

Target audience: Site Administrators, Site Managers, Site Editors

This article covers the basic supported HTML tags that you can use to publish content in the Web Management System.

NOTICE:

To learn more about HTML, W3Schools provides a comprehensive tutorial.

In this article:


Content structure and styling

HTML tagExample
<h2> </h2>
<h3> </h3>
<h4> </h4>
<h5> </h5>
<h6> </h6>

Text styling

Don't use headings to make your text look big or bold. Use them to indicate the structure of the page.

<strong> </strong>
<em> </em>
<blockquote> </blockquote>
Define an anchor on a page:
<a name="anchorname"></a>
Link to an anchor within the current page:
<a href="#anchorname">...</a>

Refer to any anchor from any page on your site, providing you have given the anchor a unique name, e.g., don't have two anchors named "forms"

Line break
<br>
A line break <br> inserts a new line
but should not be used as a substitute for paragraphs.
Horizontal rule
<hr>
A horizontal rule is a line that is 1 pixel in height.
Use this tag sparingly to avoid cluttering up pages.


Lists

HTML tagExample

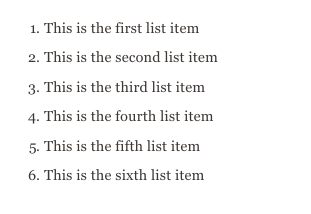

Ordered list
<ol>
<li> ... </li>
<li> ... </li>
...
</ol>

See also Other WMS classes
Unordered list
<ul>
<li> ... </li>
<li> ... </li>
...
</ul>
Definition list
<dl>
<dt> ... </dt>
<dd> ... </dd>

<dt> ... </dt>
<dd> ... </dd>
<dd> ... </dd>
...
</dl>

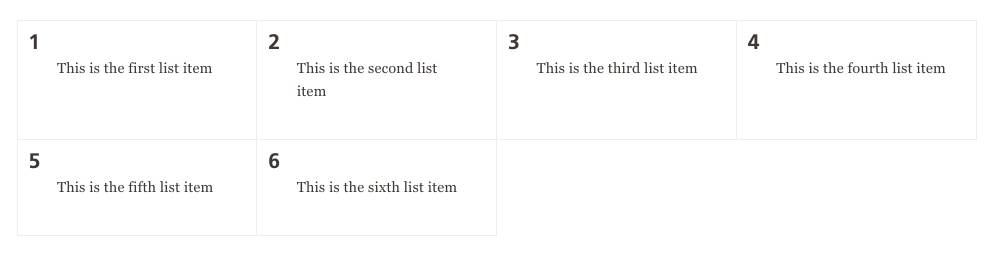

Grid
<ol class="grid">


Enables lists to be used for grid displays



Positioning and Layout

HTML tagExample

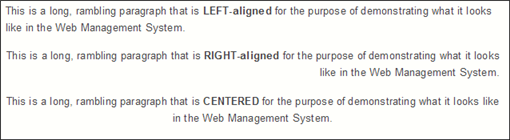

Align: left
<p style="text-align:left;">

Align: right
<p style="text-align:right;">

Align: center
<p style="text-align:center;">

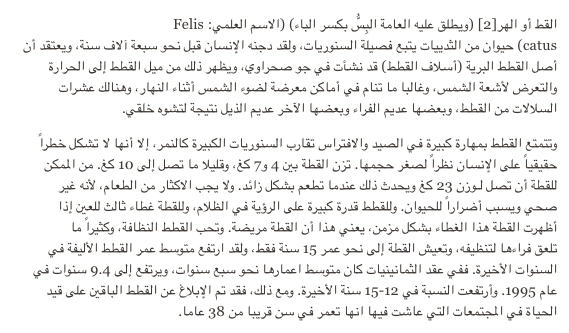

Right to left rendering (for non-Roman text)
<div class="rtl">

For more information, see Support for non-Roman characters in the WMS.



Table classes

To apply a table class, add the class directly in the Source code.

  1. Click on Source in the WYSIWYG toolbar
  2. Locate the table HTML code
  3. Change the <table> tag to include the class (e.g., <table class="no-zebra">)
ClassExample

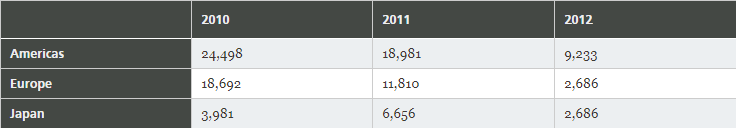

zebra (default table style)
<table class="zebra">
Shades alternate rows of the table and adds a shadow.

zebra

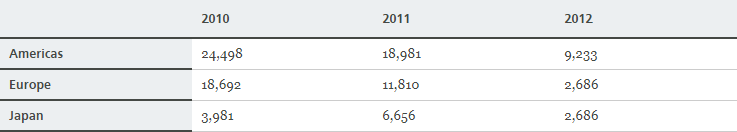

no-zebra
<table class="no-zebra">
No shading on table rows and no shadow.

no-zebra

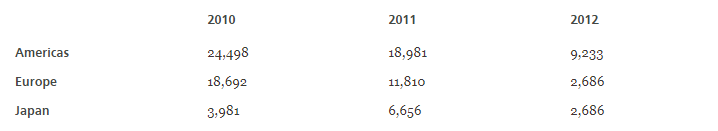

zero
<table class="zero">
Removes all shading, borders and shadow.

zero

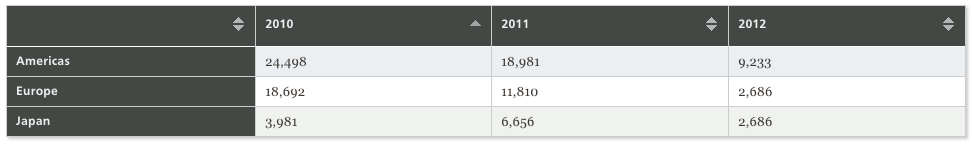

tablesorter
<table class="tablesorter">
Allows site users to sort table data in ascending or descending order by clicking on the column headings.

Note: In order to use this class, the table must have a header row.


If you are using HTML to create your table, please ensure that the row containing your header cells <th> is placed inside the table header <thead> tags, not in the table body <tbody>. The table code should look like this:

 <table class="tablesorter">
    <thead>
        <tr>
            <th scope="col">&nbsp;</th>
            <th scope="col">2010</th>
            <th scope="col">2011</th>
            <th scope="col">2012</th>
        </tr>
    </thead>
    <tbody>
        <tr>
            <th>Americas</th>
            <td>24,498</td>
            <td>18,891</td>
            <td>9,233</td>
       ...
    </tbody>
 </table>

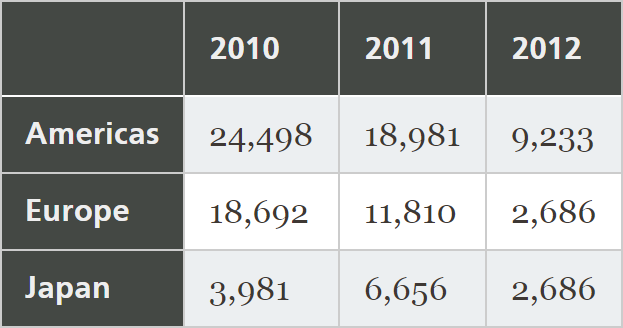

Collapse
<table class="collapse">
Table columns will shrink to fit content instead of displaying at full page width.

Default table style (zebra) without collapse class:

with collapse class:

table collapse


Other WMS classes

Beyond standard HTML elements, the WMS also provides custom classes designed for a variety of uses. These classes are tested across a variety of browsers, operating systems, and devices.

ClassExample

highlight-inline

<p class="highlight-inline">

Sets a yellow background

example of highlight-inline

highlight-icon

<p class="highlight-icon">

Add an information icon over a yellow background.

Use sparingly to make key pieces of text stand out.

example of highlight-icon

note

<p class="note">

Wraps an element in a yellow box with a red dotted border.

example of note class

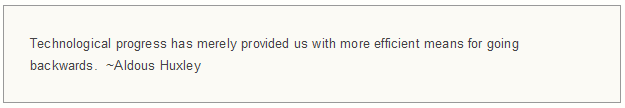

box

<p class="box">

Wraps an element in a box with a 1-pixel border.

example of the box class

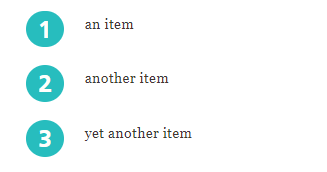

enhance

<ol class="enhance">

Adds graphical styling to the numbers in an ordered list.

Example of enhance class

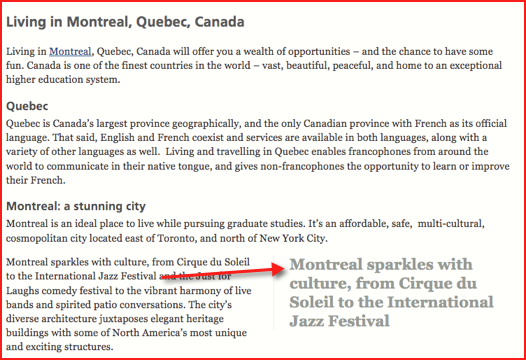

pull-quote

<p><span class="pull-quote">...</span></p>

Lifts a key quote and sets it off from the surrounding text.

The span tag is embedded within the paragraph, where it wraps around the text to be pulled.

Example of pull-quote


HTML Do’s and Don’ts in the McGill Web Management System (WMS)

This is a non-exhaustive list of HTML Do’s and Don’ts in the McGill Web Management System (WMS).

In order to maintain both the integrity and accessibility for visitors of the overall design of web pages published through the McGill WMS, we strongly advise following the guidelines listed below. Use of unsupported tags may result in broken pages; we reserve the right to remove these tags from web pages in the McGill WMS or replace them with accessible tags.

Do:

Don't:

Unsupported tags


The following are tags that are NOT to be used in web pages published in the McGill WMS. Many do not meet accessibility standards, and some have been replaced by newer standard tags (e.g., <strong> is now recommended rather than <b>).

<blink>, <font>, <body>, <head>, <link>, <title>, <center>, <marquee>, <b>, <i>, <u> <!-- -->
